SD Series BulldozerDozer


feature img1

Made - Shantui Construction Machinery Co., Ltd.

Manufacturing Year - 2012

Description - SHANTUI has more than 30 year's professional experience in construction machinery producing a wide range of well-engineered equipment. This equipment provides solutions for current and future clients all over the world, to move forward in the building of the business.

SD series bulldozer feature - Good quality instrument panel Transmission, steering clutch and brake levers console-mounted on left, blades and ripper controls on right hand side Control system is ergonomically designed. Steering clutch and brake lever travels/loads have been reduced for less operator fatigue Centralised hydraulic pressure inspection for easy maintenance Hexahedron cabin is rubber mounted to reduce noise and vibration, provides wide visibility and a comfortable work environment.

BULL DOZERS

Model

SD13

SD16

SD23

SD32W

Engine Make SHANGCHAI SHANGCHAI CUMMINS CUMMINS
Engine Model D6114ZG4B C6121 NT855-C280 NTA855-C360
Power 130 Hp 160 Hp 230 Hp 320 Hp
Max.Torque 674 Nm 764 Nm 1036 Nm 1440 Nm
Op.Weight 13,700 Kg 17,000 Kg 24,600 kg 38,000 kg
Min.Gr. Clearance 320 mm 400 mm 405 mm 500 mm
Ground Pressure 0.064 Mpa 0.067 Mpa 0.078 MPa 0.105 Mpa
Gradeability(Degree) 30 30 30 30
Blade Width 3185 mm 3388 mm 3725 mm 4130 mm
Blade Height 1090 mm 1149 mm 1395 mm 1590 mm
Max. Tilt Adj. 400 mm 400 mm 1210 mm 1000 mm
Forward Speed 0 - 9.8 km/h 0 - 9.63 km/h 0 - 11.8 km/h 0 - 11.5 km/h
Reverse Speed 0 - 11.9 km /h 0 - 12.53 km/h 0 - 14.3 km/h 0 ??" 13.5 km/h

share:

Our other products


Landfill Compactor QS300

Shantui Construction Machinery Co., Ltd.

Commercial Vehicle

Landfill Compactor SR28MR

Shantui Construction Machinery Co., Ltd.

Commercial Vehicle

Concrete Boom Pump HJC5390THB

Shantui Construction Machinery Co., Ltd.

Pumps, Valves and Compressors

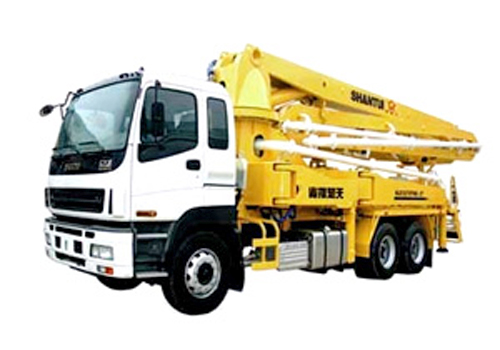

Concrete Boom Pump HJC5270THB
